Cone crusher main shaft: design, maintenance and optimization

As an indispensable equipment in mining, metallurgy and other industries, the design and performance of the core component of the cone crusher, the main shaft, directly affect the working efficiency and service life of the whole machine. This article will explore the design principles, common problems and solutions of the cone crusher main shaft in depth, and introduce a high-efficiency and durable main shaft design scheme in detail.

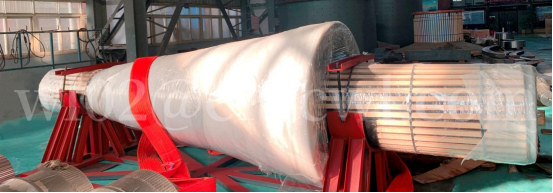

Wangli main shaft

1. Design principles of cone crusher main shaft

The design of the cone crusher main shaft needs to comprehensively consider material selection, mechanical analysis, processing technology and other aspects. First of all, the choice of materials is crucial. High-quality alloy steel is the preferred material due to its high strength, good wear resistance and fatigue resistance. Secondly, in the mechanical analysis stage, the designer needs to use the finite element analysis method (FEA) to accurately simulate the stress distribution of the main shaft under different working conditions to ensure that the main shaft can withstand the maximum workload without deformation or fracture. In addition, reasonable processing technology cannot be ignored. The use of precision casting and heat treatment technology can significantly improve the mechanical properties of the main shaft and extend its service life.

Detailed introduction of cone crusher main shaft:

Function: The main shaft is the power transmission core of the entire crusher. It drives the moving cone to rotate at high speed through the motor drive, thereby realizing the continuous crushing of the material. The design of the main shaft must take into account the swing frequency of the moving cone, the size of the crushing force, and the wear during long-term operation.

Key parameters: including main shaft diameter, length, surface roughness, etc. These parameters directly determine the bearing capacity and service life of the main shaft. For example, the larger the main shaft diameter, the stronger its bearing capacity, but it will also increase the overall weight and cost of the equipment.

2. Common problems and solutions

Although the design of modern cone crusher main shaft is quite mature, some problems are still encountered in actual use, the most common of which is the main shaft breakage and crack phenomenon. These problems are usually caused by the following reasons:

1. Overload operation: When the feed size is too large or excessive, the main shaft may be subjected to a load beyond the design range, causing fracture.

2. Material defects: If there are tiny cracks or other internal defects in the raw materials, they are easy to expand into large cracks under long-term high stress.

3. Improper operation: Sudden shutdown or start-up, frequent adjustment of clearance, etc. may cause spindle damage.

For the above problems, effective preventive measures include: regular inspection and maintenance of equipment to ensure that all parameters are within the normal range; selection of high-quality raw materials and strict control of production processes; training operators to use equipment correctly.

3. Optimization plan

In order to further improve the performance of the cone crusher spindle, some new design concepts and technical means have emerged in recent years. For example:

Intelligent monitoring system: real-time monitoring of the working status of the spindle, timely detection of potential faults.

Surface treatment technology: use advanced surface treatment technology to enhance the surface hardness and wear resistance of the spindle.

New material application: use new composite materials to replace traditional metal materials, reduce weight while maintaining sufficient strength.

IV. Example Introduction

The cone crusher spindle produced by our factory adopts the latest design concepts and technological achievements. We selected special high-strength alloy steel as the basic material, and it has undergone multiple rigorous heat treatment processes to ensure its excellent mechanical properties. At the same time, we are also equipped with a professional quality inspection team, and we strictly control every link from raw material procurement to finished product delivery to ensure that every product can meet or even exceed national standards. Our spindle design fully considers the actual needs of users. It not only has a strong load-bearing capacity, but also is easy to install and maintain, which greatly improves production efficiency. If you are looking for a reliable and efficient cone crusher spindle, please contact us for more information!wl02@citicwl.com
