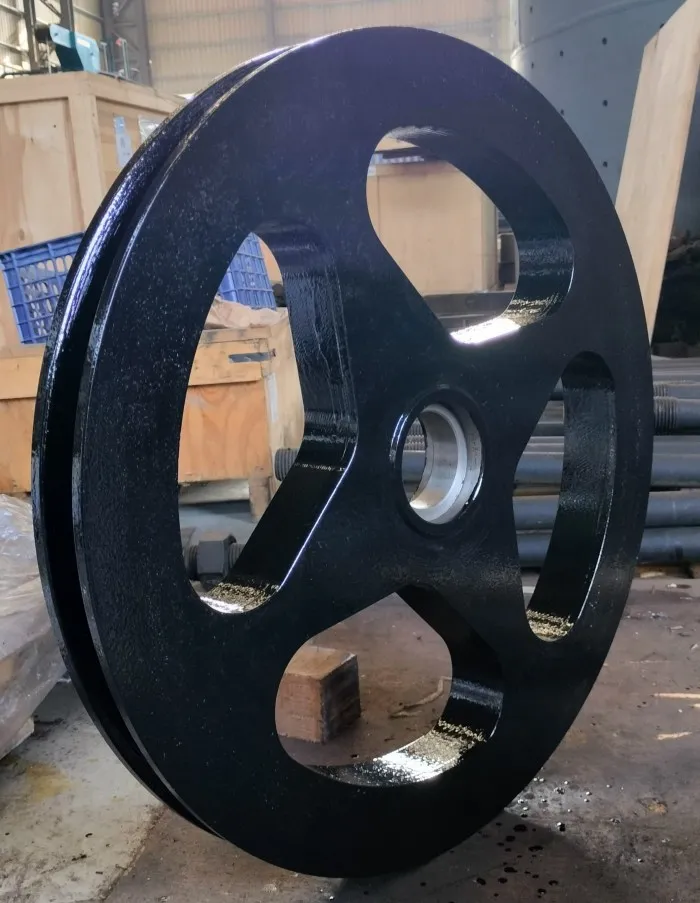

Forging rope wheel for Crane

Overview of rope Sheave

Rope Sheave, also known as a pulley, is a simple mechanical device in mechanical engineering that consists of a grooved wheel and a rope running through the grooved wheel. The rope wheel can be used alone, or it can be combined with other rope wheel groups to form more complex systems, such as movable pulley, fixed pulley or pulley group.

Applications of rope Sheave

Excavator:Excavators use rope wheels to control the action of their grab or bucket, especially when carrying out deep pit excavation, the rope wheel helps to precisely adjust the position of the tool and apply the appropriate force.

Crusher:To deal with large rocks or ore, mines use crushers and screeners. These devices sometimes also use a rope wheel system to assist in the opening and closing of the hopper or other related components.

The production process of rope sheave

Material selection

Select the appropriate material according to the working environment and load conditions of the rope wheel. Common materials include cast iron, steel, aluminum alloys and engineering plastics. For high-strength applications, alloy steel is usually chosen and may be heat treated to enhance mechanical properties.

Blank manufacturing

Casting: Rope Sheave suitable for complex shapes, the initial shape is formed by pouring liquid metal through sand mold or metal mold.

Forging: Suitable for mass production and have high mechanical properties of the product, through the forging process to make the material more dense, improve the strength.

Roughing

Preliminary turning, milling and other processing of the blank is carried out to form the approximate overall dimensions, such as the outside diameter, the inside hole and other non-working faces. This step prepares for subsequent finishing.

Finishing

Outer circle machining: The use of CNC lathes or other special equipment to accurately process the outer circle of the rope wheel to ensure surface finish and smoothness.

Groove machining: The use of special groove tools to cut V-shaped or other shaped grooves on the rope wheel for the installation of belts or ropes.

Bearing housing machining: If the rope wheel contains bearings, the corresponding bearing mounting holes and end faces need to be machined.

Heat treatment

For applications that require high hardness and wear resistance, hardening, tempering, or other forms of heat treatment may be performed on the rope Sheave. It should be noted that after heat treatment, minor finishing may be required again to restore dimensional accuracy.

Surface treatment

Anti-rust treatment: coated with anti-rust oil or wrapped with gas phase anti-rust paper to prevent rust.

Coating or painting: In order to enhance corrosion resistance or improve the appearance, you can choose galvanized, chrome plating or spray paint.

Package of Rope Sheave

Wooden boxes are one of the most commonly used forms of packing for large rope wheels. It provides good protection against external shocks and environmental factors. The inside of the wooden box can be customized according to the specific shape of the rope wheel liner or support structure to ensure that the rope wheel will not move inside the box.

Parameter of Rope Sheave

Material	Alloy steel,Carbon steel,Carburizing steel,Quenched and tempered steel
Heat treatment	Normalizing,Annealing,Quenching&Tempering, Surface Quenching,Case hardening
Machining	CNC Turning,CNC Milling,CNC Boring,CNC Grinding,CNC Drilling
Inspection	Chemical Composition Test,Ultrasonic Test,Penetration Test,Radiographic Test,Magnetic Test,Tensile Strength Test,Impact Test,Hardness Test,Dimension Test

FAQs of Rope Sheave

-What do you need to pay attention to when installing rope wheel?

-Ensure that the rope wheel is firmly installed and the shaft hole is well matched with the shaft; Check that all connectors are tight; Make sure the rope is properly positioned and does not slip out easily; Check and lubricate bearings regularly.

-How to maintain the rope wheel?

-Regular cleaning and lubrication is the key to keeping the rope wheel in good working condition. Remove dust and debris, check for wear, and replace damaged parts in a timely manner.

-Do rope wheels require special maintenance?

-Particularly complex maintenance is usually not required, but a reasonable maintenance plan should be developed according to the frequency of use and environmental conditions. For rope wheels used in harsh environments, more frequent inspections and maintenance may be required.

-What is the maximum capacity of the rope wheel?

-This depends on the specific design and manufacturing material of the rope wheel. When purchasing, you should check the technical parameter sheet provided by the manufacturer to ensure that it does not exceed its rated load.

-What are the safety precautions when using rope wheel?

-Always follow the manufacturer’s operating guidelines; Make sure the rope and pulley match; Avoid overload use; Take appropriate safety measures when working at heights; Periodically check device status.
