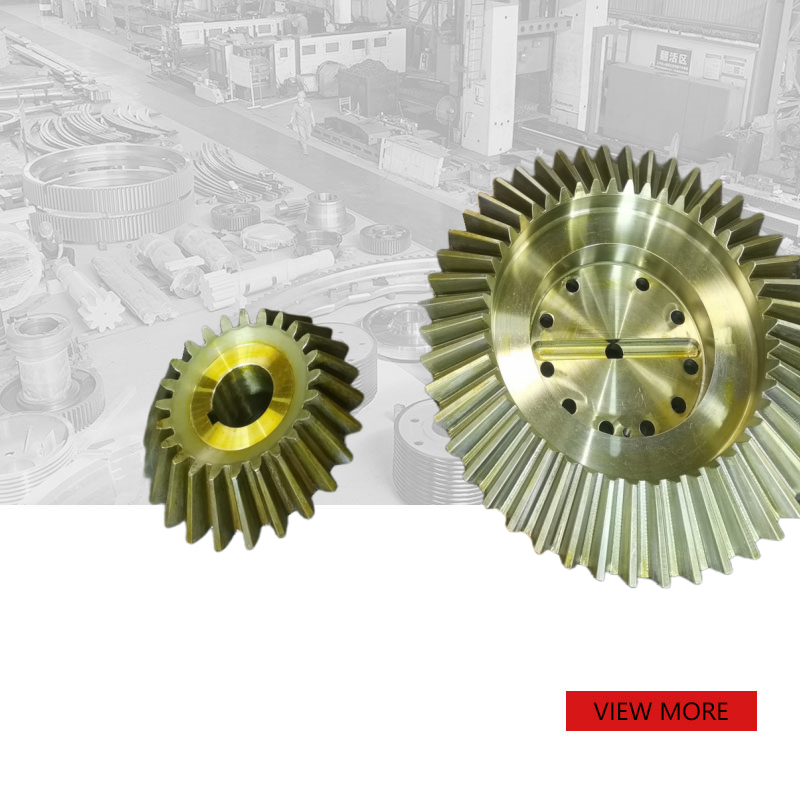

42CrMo forging cone crusher wear-resistant Straight bevel gear

一. Overview

Bevel gears are used for transmission between intersecting shafts. Compared with cylindrical gears, they can change the transmission direction. The single-stage transmission ratio can be up to 6 and the maximum is 8.

Bevel gears are divided into straight bevel gears and spiral bevel gears.

二. Application

三．Features

1. Can realize the conversion of different speeds and torques

2. The tooth line is distributed in a straight line

3. High efficiency

4. High impact load

5. Easy maintenance

四．Prodution process

1. Forging

Bevel gear blank forgings, forgings can adapt to harsher environments, with the advantages of high strength and toughness, extend product life

2. Rough machining

Roughing is an important step that sets the basic shape and increases production efficiency

3. QT

By heat treatment, the hardness and strength of the bevel gear can be improved, the toughness can be enhanced, the internal structure can be optimized, and the service life can be extended

4. Milling

Bevel gear milling is a common machining method, with flexibility, can improve production efficiency, support complex geometry, improve accuracy

5. Mesh

It is a key step in ensuring smooth, efficient and reliable operation of a pair of bevel gears under actual operating conditions. This ensures correct contact patterns, improves transmission efficiency, and reduces noise and vibration.

6. Rust prevention & Packaging

五. Why choose us

–40+ years production experiences

–50+ sets of equipments

–exported to 50+ countries and regions

–40+ patents

–3 international key projects
